3 L/min All-in-One PEM Hydrogen Generator

Integrated equipment and controls

The MEHS-3000 is an all-in-one PEM hydrogen generator with a nominal hydrogen output of 3 L/min. It combines the electrolyzer, DC power supply and water-handling components in one enclosure.

The system has a 20 L water tank, gas-water separation, separate hydrogen and oxygen outlets, and a water-level viewing window. The operating manual lists short-circuit, low-water-level and temperature protection.

A closer look at the unit

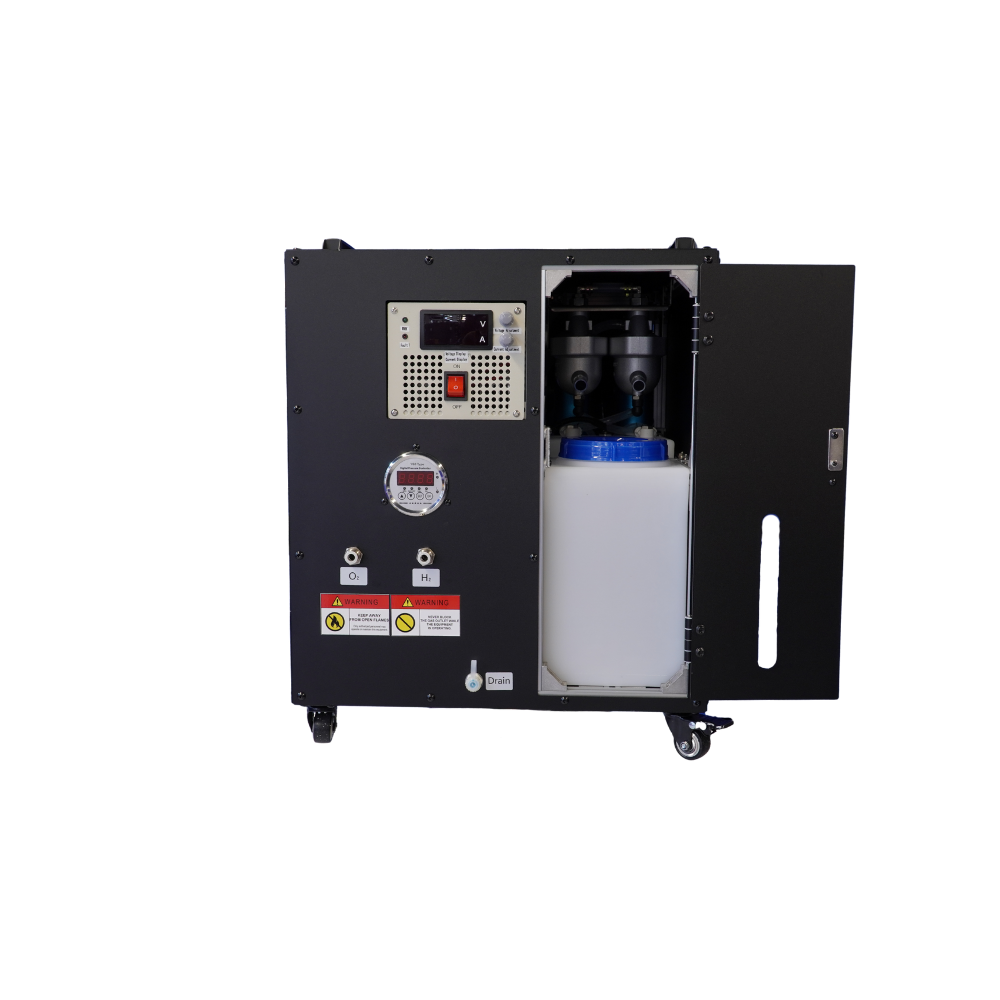

Front water access and controls

Rear panel and AC power connection

Internal equipment layout

Installation and operation

Use purified or distilled water with conductivity below 2 µS/cm at the electrolyzer inlet. The manual specifies 12 mm interface piping and recommends an operating environment at or below 40°C. Keep the unit in a ventilated area, away from open flames, and follow the operating manual before starting the system.

For prolonged operation, the manual calls for a matched radiator and 10–15 L of water in the tank. Confirm the cooling arrangement and included accessories for your intended duty cycle when ordering.

Frequently asked questions

What should I specify when requesting a quotation?

Tell us your application, required hydrogen pressure and purity, daily operating hours, quantity and destination. We will confirm the configuration, cooling arrangement and supplied accessories in the quotation.

Is this a complete generator or a standalone stack?

This product is an integrated generator with its power supply and water-handling components. Projects requiring an electrolysis component for a separate system can explore our PEM electrolyzer stacks.

Where can I compare models and read the manual?

Compare this model with the 7 L/min all-in-one generator, browse all PEM hydrogen generators, or download the English operating manual (PDF).
